Digital Microscope Leica DVM6

Description:
The Leica DVM6 is a high-resolution light microscope.
Image quality is impeccable using famous Leica Planapo optics, a high resolution camera, and LED illumination options that produce excellent contrast on any sample from the big picture to smallest details.

Specification:

  • Software Leica LasX
  • High Resolution 10-Megapixel Camera
  • 2D and 3D Measurements
  • XY-Stage, Manual and Motorized
  • Focus Drive (coarse/fine), Manual and Motorized
  • Tilting Angle, Continuous Adjustment from  ± 60°
  • Illumination: Transmitted and Reflective

  • Planapo Objectives:
    • FOV 43.75: The objective for maximum overview (with 45 mm FOV diagonale)
    • FOV 12.55: The workhorse with big magnification range (40x-675x) at high working distance (33 mm)
    • FOV 3.60: Ideal for maximum resolution (up to 2,350x at 425 nm resolution)

Cold Field Emission Gun
Accelerating voltages: 60, 80 & 200 kV
Probe (STEM)-Cs-Corrector; Image (TEM)-Cs-Corrector
JED-2300 Energy-dispersive X-ray detector, 100mm<sup>2</sup>
Gatan GIF Quantum
Gatan OneView (4k x 4k) & Gatan US1000 (2k x 2k) cameras

Jeol JEM-ARM200F TEM

Cold Field Emission Gun Accelerating voltages: 60, 80 & 200 kV Probe (STEM)-Cs-Corrector; Image (TEM)-Cs-Corrector JED-2300 Energy-dispersive X-ray detector, 100mm2 Gatan GIF Quantum Gatan OneView (4k x 4k) & Gatan US1000 (2k x 2k) cameras [more]

LaB<sub>6</sub> cathode
Lateral resolution: 0.37 nm
Point resolution: 0.34 nm
Accelerating voltage: 120 kV
Magnifications: 80-500000x
OMEGA-type in-column energy-filter

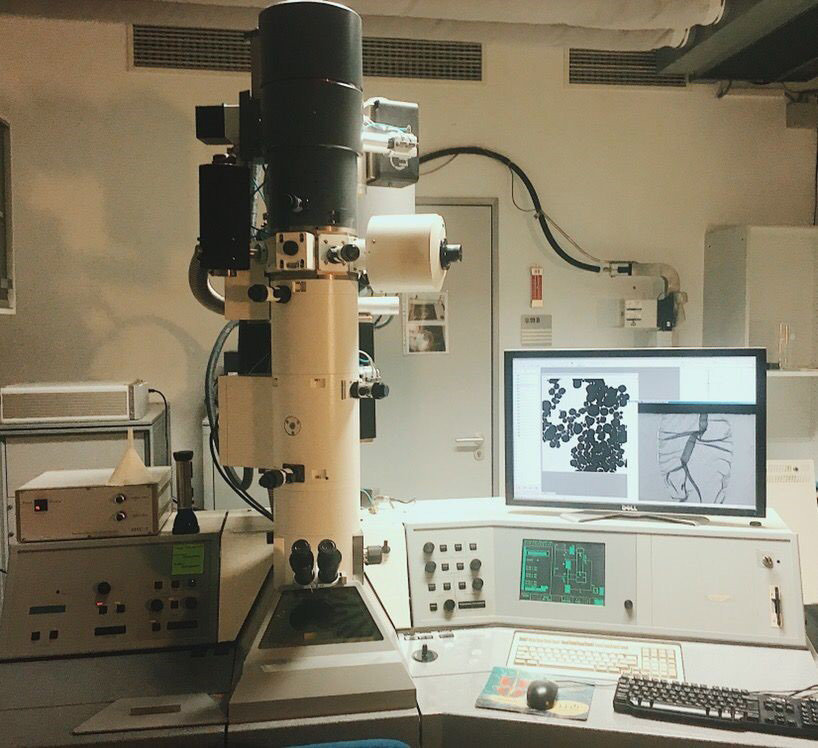

Zeiss TEM 912 Omega

LaB6 cathode Lateral resolution: 0.37 nm Point resolution: 0.34 nm Accelerating voltage: 120 kV Magnifications: 80-500000x OMEGA-type in-column energy-filter [more]

Thermal field emission gun
Resolution at 1 kV: 3 nm
Resolution at 20 kV: 1 nm
Accelerating voltage: 0.2 to 30 kV
Magnification: 20-900000x

SEM Gemini 1550 (Zeiss AG)

Thermal field emission gun Resolution at 1 kV: 3 nm Resolution at 20 kV: 1 nm Accelerating voltage: 0.2 to 30 kV Magnification: 20-900000x [more]

Software Leica LasX
High Resolution 10-Megapixel Camera
2D and 3D Measurements
XY-Stage, Manual and Motorized
Focus Drive (coarse/fine), Manual and Motorized
Tilting Angle, Continuous Adjustment from  ± 60°
Illumination: Transmitted and Reflective

Digital Microscope Leica DVM6

Software Leica LasX High Resolution 10-Megapixel Camera 2D and 3D Measurements XY-Stage, Manual and Motorized Focus Drive (coarse/fine), Manual and Motorized Tilting Angle, Continuous Adjustment from  ± 60° Illumination: Transmitted and Reflective [more]

Software: Leica LasV3.8
High Resolution Leica Camera DFC 280
XY Stage Manual
Manual Focus Drive (coarse/fine)
Illumination: Transmitted and Reflective
Polarisation Filter for Illumination

Leica DMR Microscope

Software: Leica LasV3.8 High Resolution Leica Camera DFC 280 XY Stage Manual Manual Focus Drive (coarse/fine) Illumination: Transmitted and Reflective Polarisation Filter for Illumination [more]
